Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool

In Stock. History 92 sold. Item No. AS150
Buy Now: US$550
USD 550.00 CAD 837.37 EUR 553.85 GBP 461.45
April Super Deals! Start Now!
Enjoy the best Price.
https://www.autonumen.com/category-182-b0-Discount+Products.html

If you have any questions, please do not hesitate to contact us.
Email: Service@autonumen.com
Whatsapp: +86-18437976115
Shipping:
Express Shipping Service    Estimated delivery time: 3-5 working days.See details »
Because the covid-19 affects , the delivery time will be have delays , thanks
Weight:
3.5KG
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description

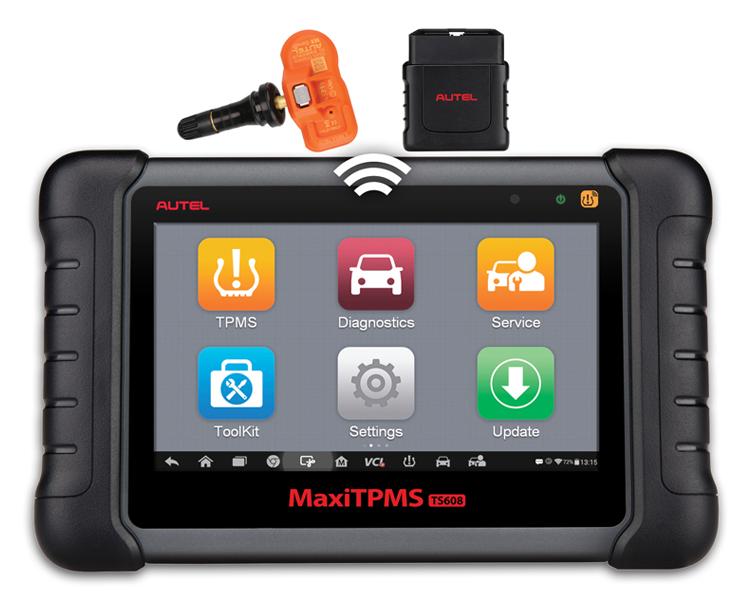

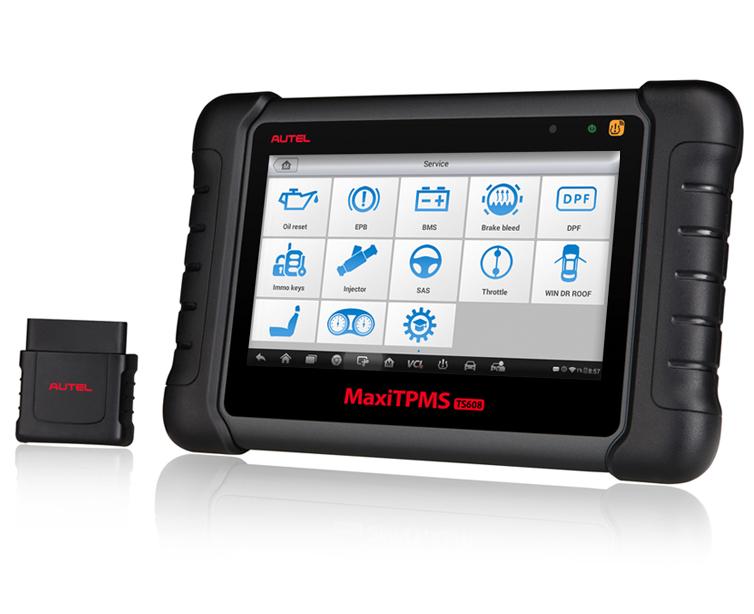

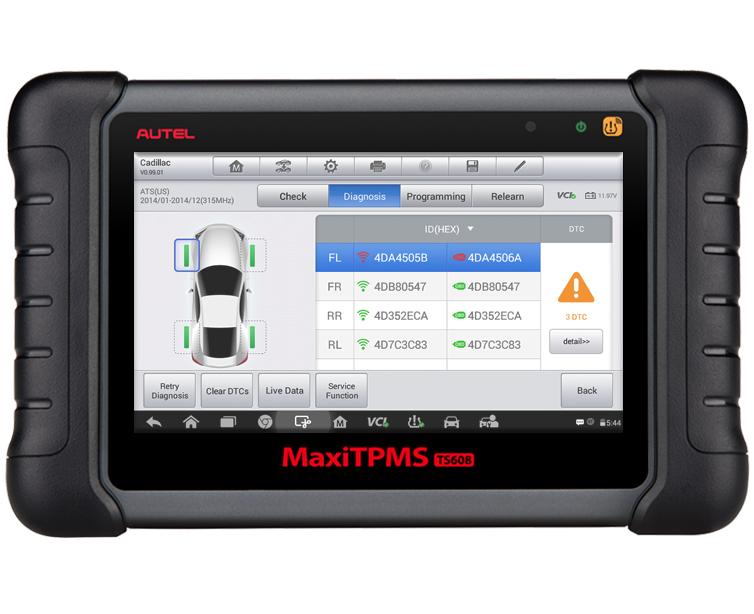

Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool



Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool

1. One-Year Warranty and One Year Free Update Online
2. Combine with TS601,MD802 and MaxiCheck Pro 3 in 1
3. Vehicle Coverage: Compatible with Vehicles 1996 and Newer
4. Mini Bluetooth Vehicle Communications Interface (VCI) for Wireless Connectivity

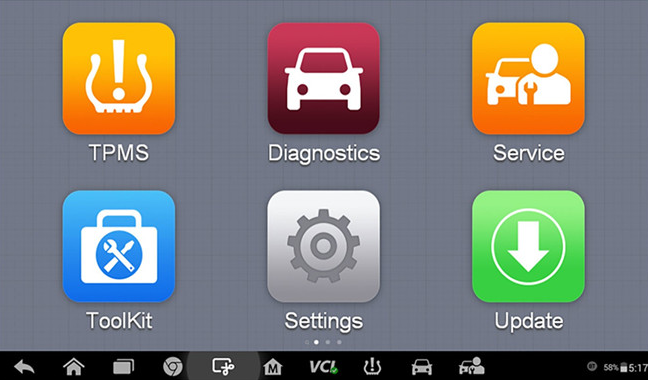

5. Three Tools in One Tablet: Complete TPMS diagnostics, advanced service features and all systems diagnostics
6. Embedded Antenna for TPMS Sensor Activation and MX-Sensor Programming to Replace Damaged Sensors













COMPLETE TPMS & ALL SYSTEM SERVICE TABLET TOOL
As the first comprehensive TPMS & Diagnostic tool in the market, MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.

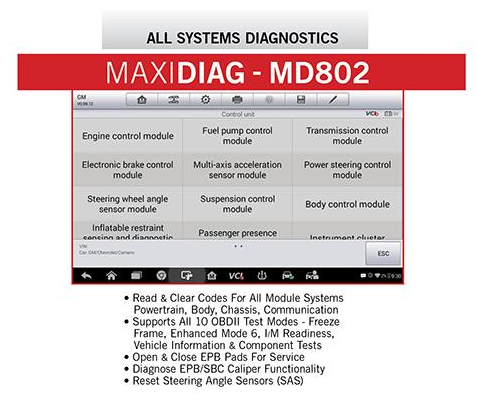

ALL SYSTEMS DIAGNOSTICS
1.Read/clear codes for all available electronic systems;
2.Turn off warning lights;
3.Display live data in text, graph & analog for easy data review;
4.Supports all 10 test modes of the latest J1979 OBD II test specs;
5.Enhanced OBDII Mode 6;

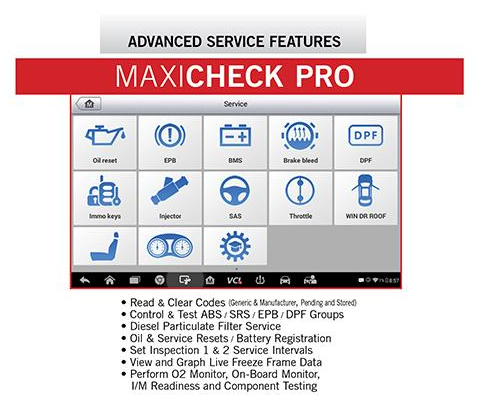

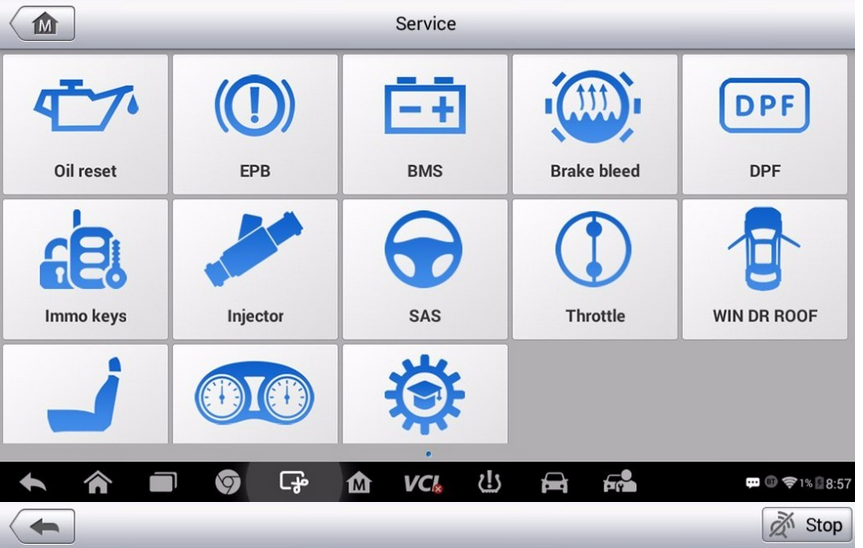

ADVANCED SERVICE FEATURES
1.Relearn parking brake pad after replacement;
2.Reset Steering Angle Sensor (SAS);
3.Reset service mileage and service intervals;
4.Forced regeneration and adjusting injectors;
5.Support battery registration and reset;
6.Support IMMO functions;

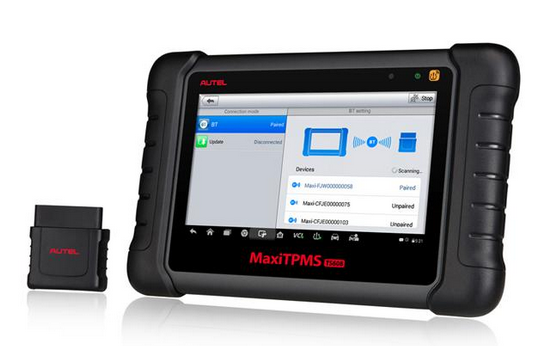

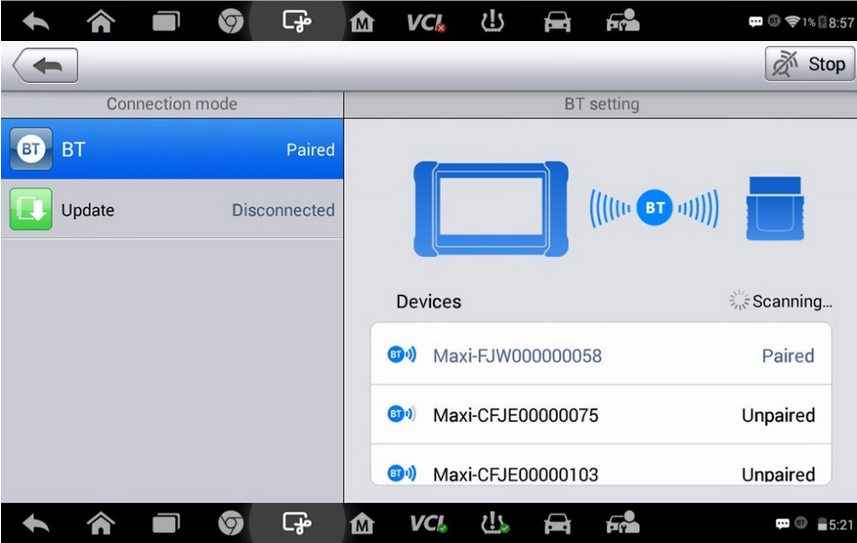

WIRELESS BLUETOOTH MAXI-VCI MINI
The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.




Description:

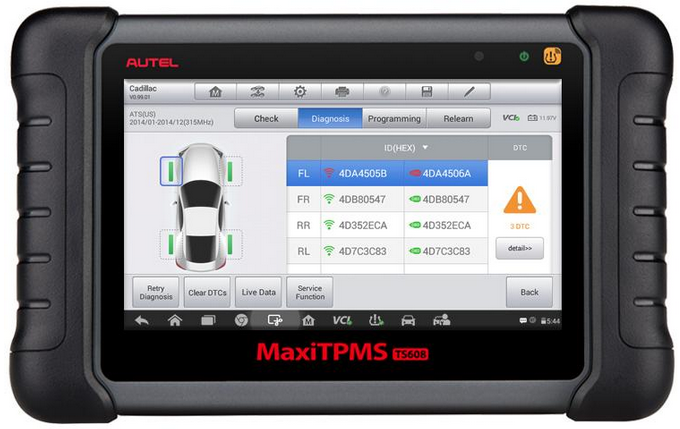

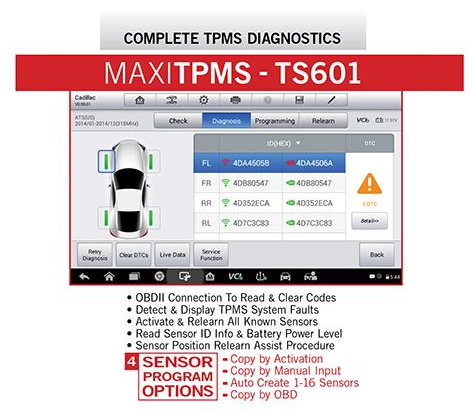

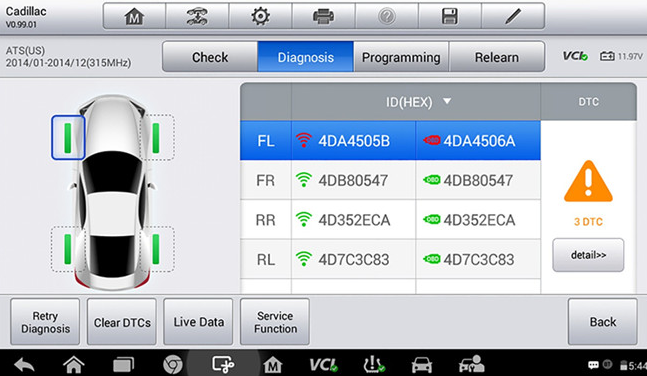

COMPLETE TPMS FUNCTIONS
1.Activate all known TPMS sensors and read sensor status;
2.Diagnose ECU for complete TPMS health check with DTC description;
3.Read DTCs from ECU and erase DTCs;
4.Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5.On-tool relearn procedure and wide OBD relearn coverage;
6.Toolkit, special TPMS functions;


Specifications:

Recommended Use

Indoor

Operating System

Android 4.4.2, KitKat

Processor

Cortex-A9 processor (1.6 GHz)

Memory

1GB RAM DDR3 & 32GB ROM

Display

7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity

Mini USB 2.0;
USB 2.0;
Wi-Fi;
HDMI Type A;
Micro SD card slot (supports up to 32GB);

Sensors

Light sensor for brightness auto adjust

Audio input/output

Input: N/A;
Output: Beep;

Power and Battery

3.7 V/5000 mAh lithium-polymer battery;
Charges via 5 VDC power supply;

Tested Battery Life

Around 7 hours of continuous use

Battery Charging Input

5 V/1.5 A

Power Consumption

600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temp.

-10 to 60C(14 to 140F)

Storage Temp.

-20 to 70C (-4 to 158F)

Operating Humidity

5% - 95% non-condensing

Dimensions (W x H x D)

270.8 mm (10.0) x 176.0 mm (6.9) x 36.0 mm (1.4)

Net Weight

885 g (2.31 lb.)

Protocols

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
SAE J2610, GM UART,UART Echo Byte Protocol,
Honda Diag-H Protocol, TP2.0, TP1.6

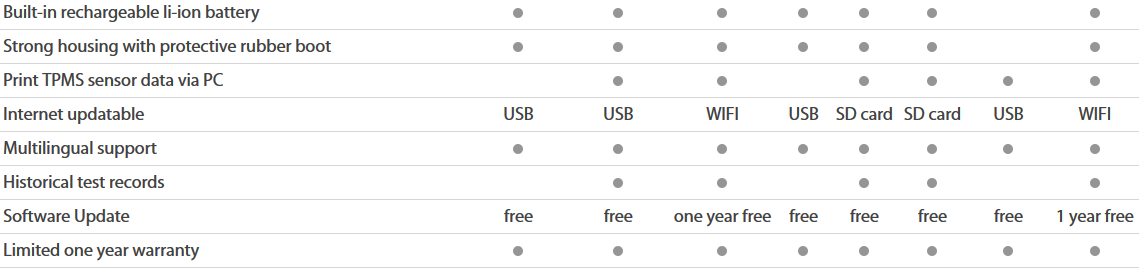

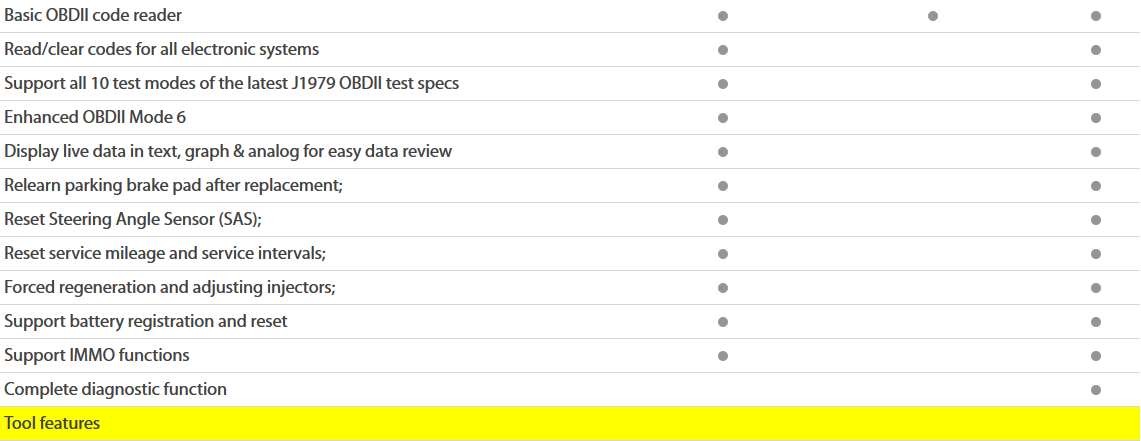

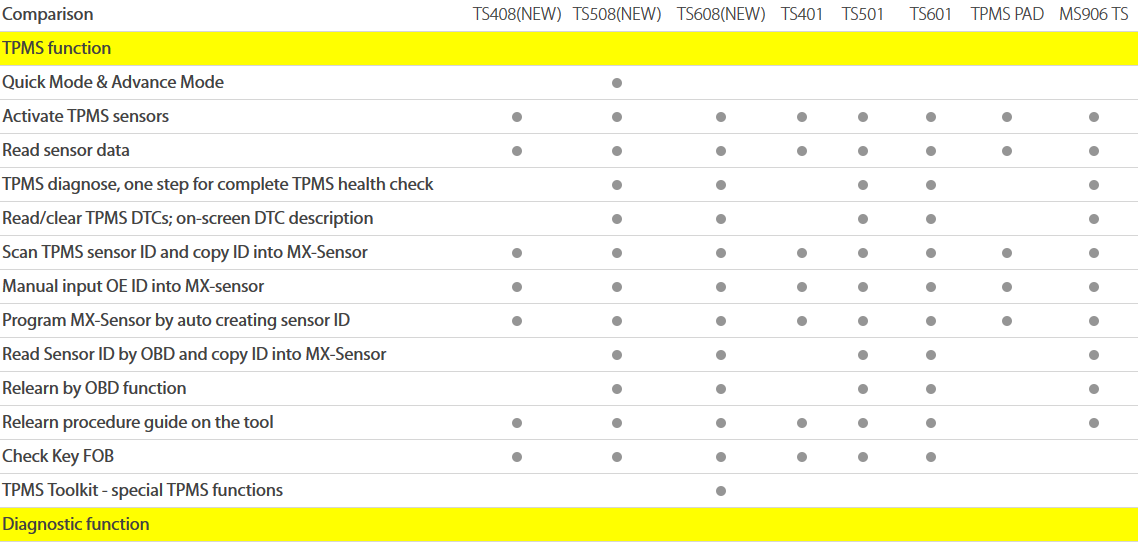

Comparison:

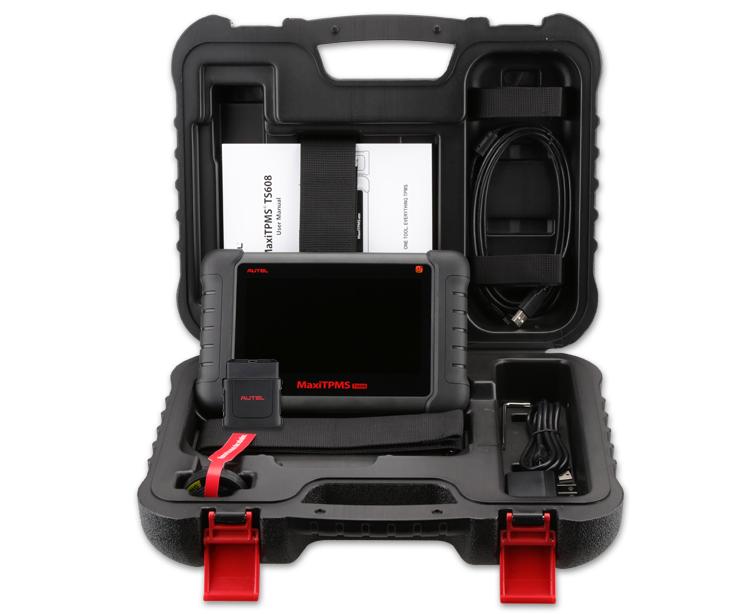

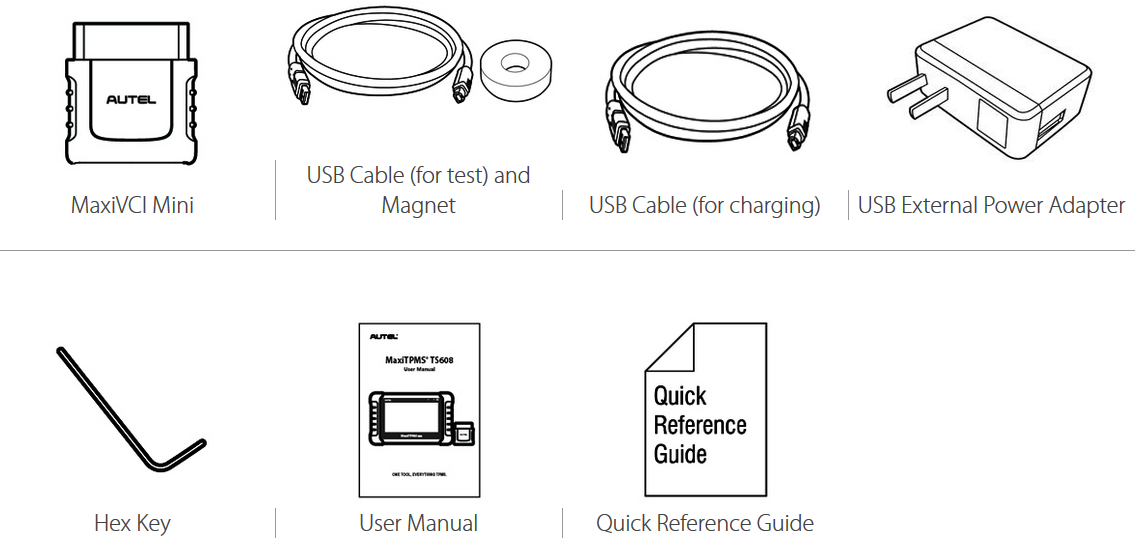

Accessories:
